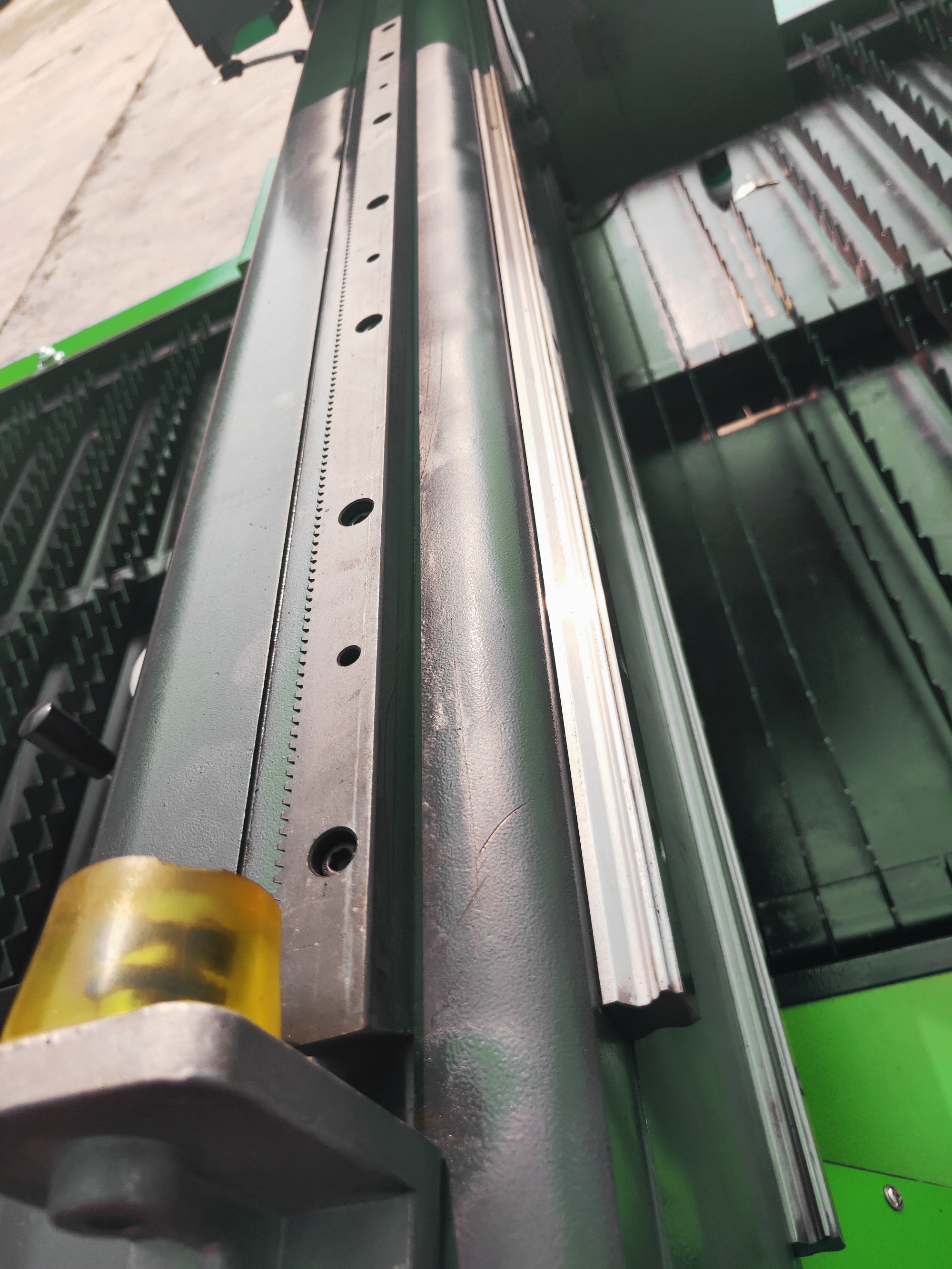

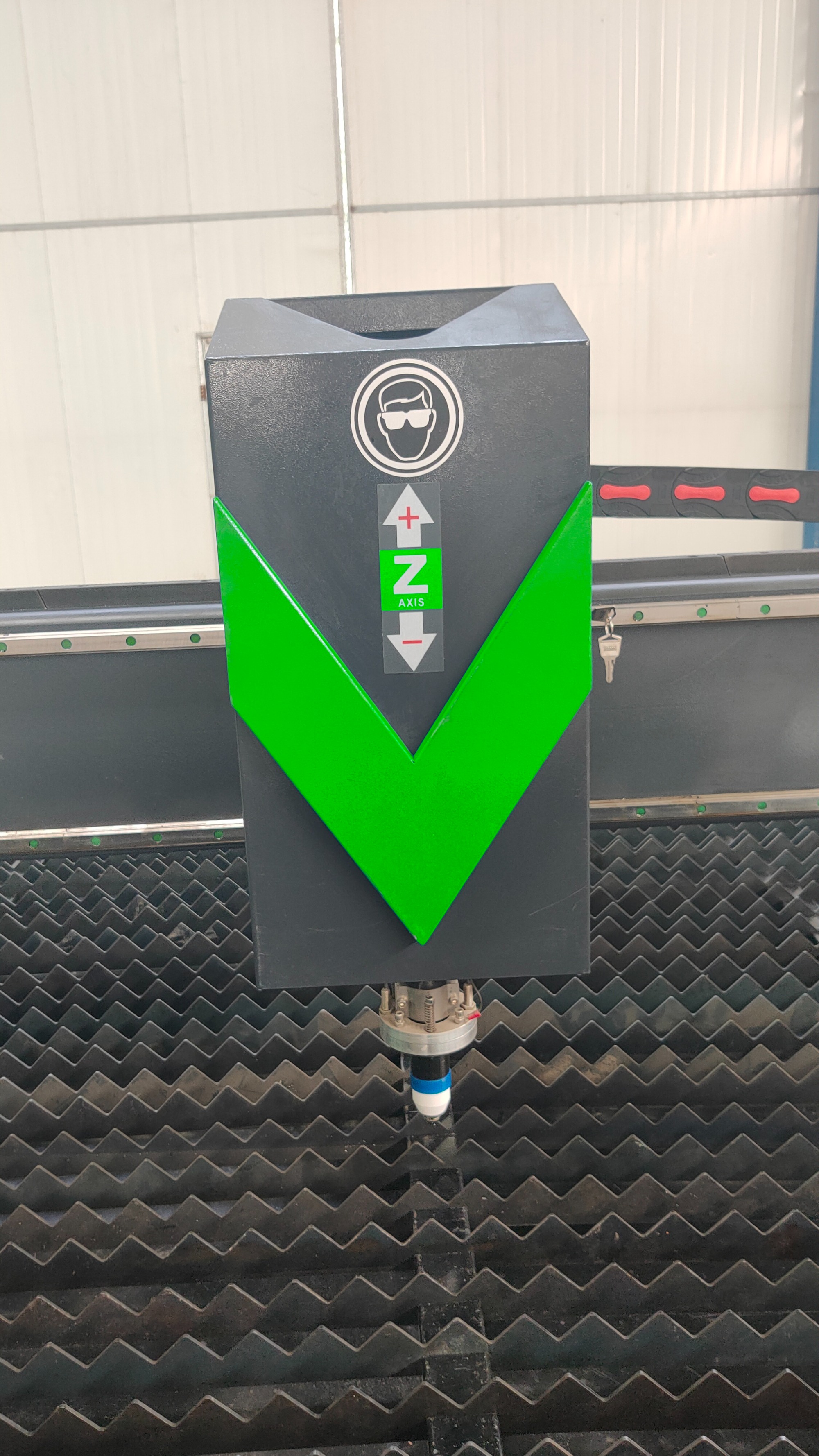

| The Cutting Head | The Linear Guide Rail |
 |
 |

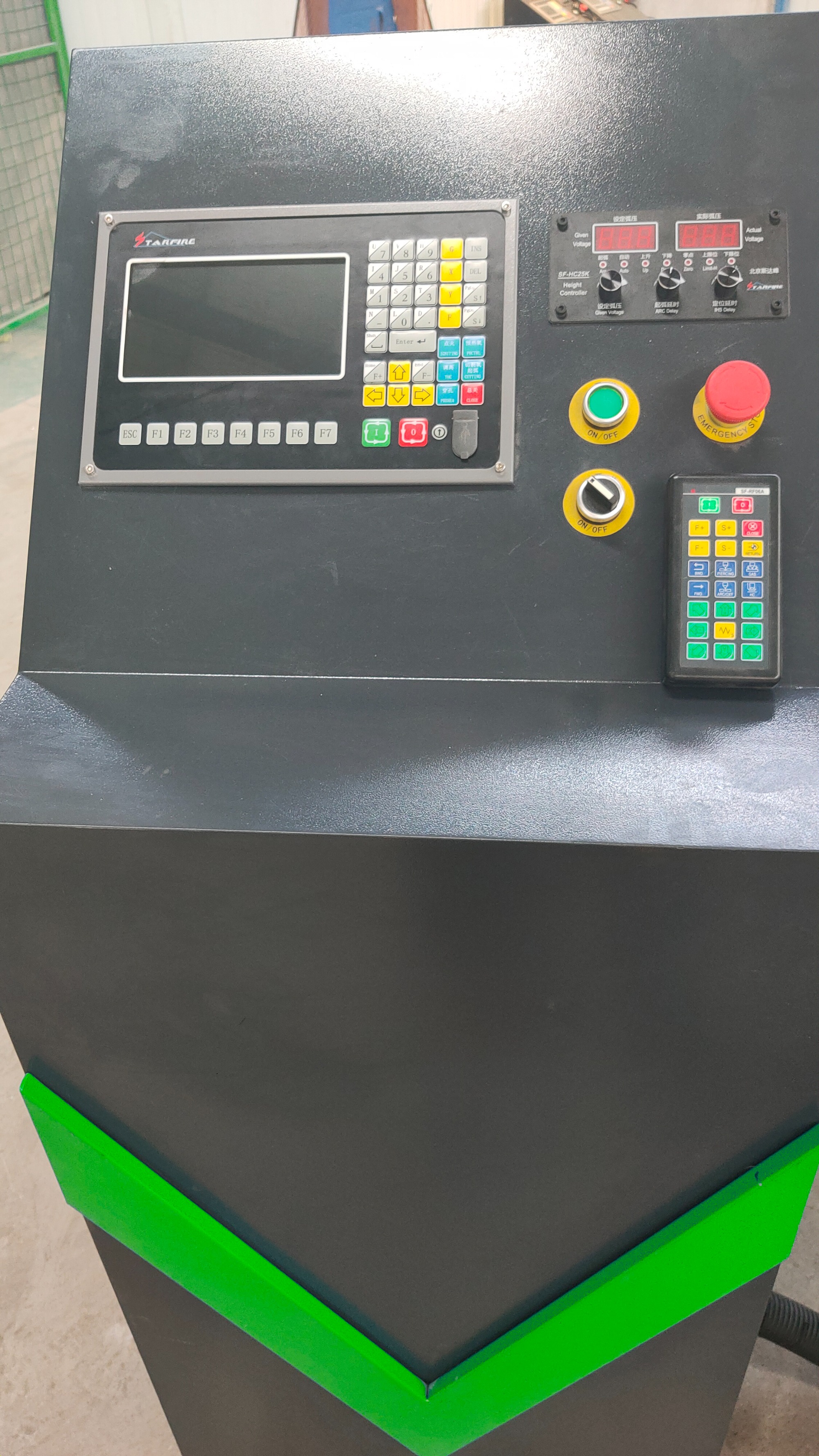

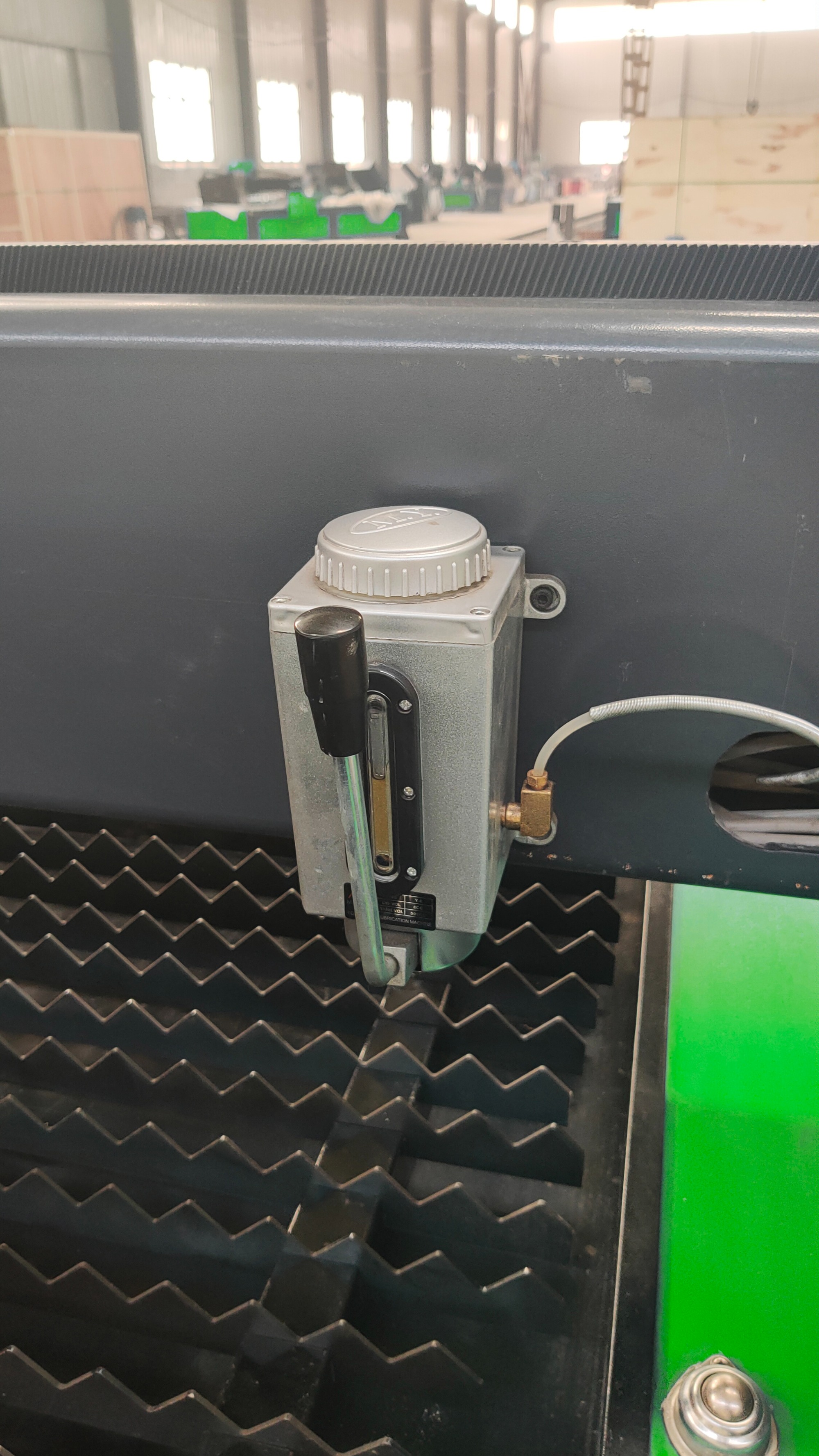

| The Controller | The Lubrication System |
|
Model |

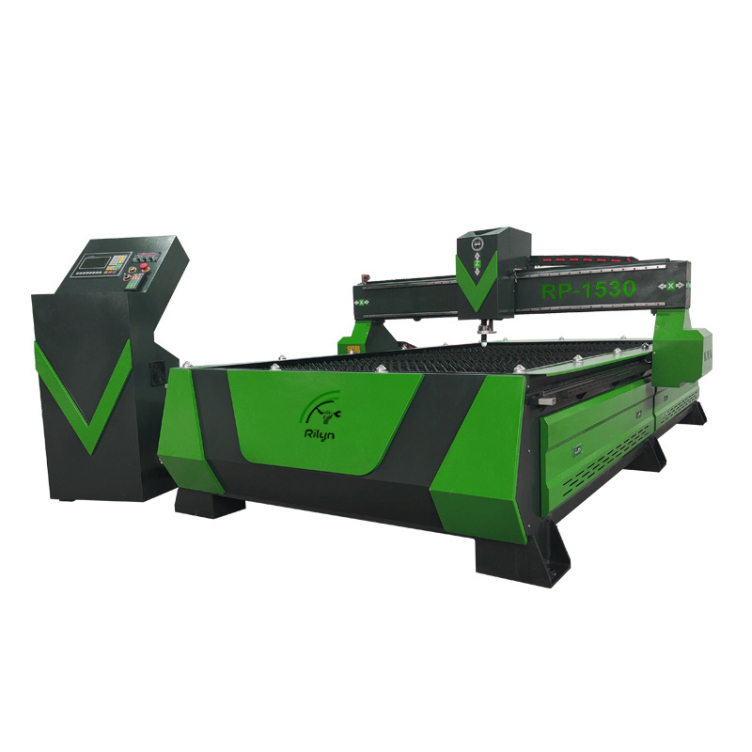

CNC Plasma Cutting Machine RP1530 |
|
X,Y working area |
1500*3000mm |
|
Z working area |
150mm |
|
Packing dimension |
2280mm*3850mm*1850mm |
|
Lathe bed |
Very thick steel structure |
|
Machine Power |
16kw |
|
Working voltage |
380V three-phase 60hz |
|
Reposition precision |
0.02mm |
|
Processing precision |
0.1mm |
|
Maximum cutting speed |
12000mm/min |
|
Torch Height control mode |
Automatic |
|
Cutting thickness |
Max 12mm carbon steel |
|
Plasma power supply |
LGK63A Plasma |
|
Control system |
Starfire |
|
Motors |
servo motor |
|
Software |
Starcam |
|
Weight |
1600KG |
|
Plasma Air Pressure |
Max.0.8Mpa |
|
Working Temperature |
-10°C-60°C. Relative Humidity, 0-95%. |
|
LCD Display Dimension |
7 Inches |
