Home > Solid Wood Machinery > Planer > Four-side Moulder

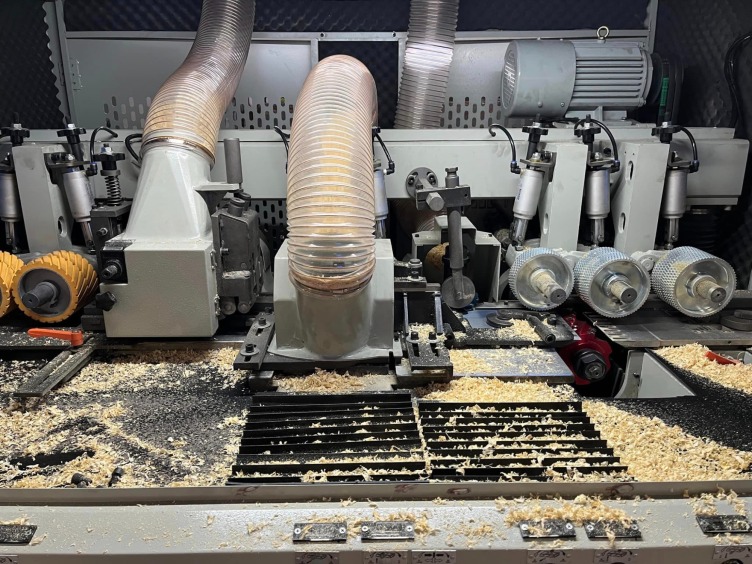

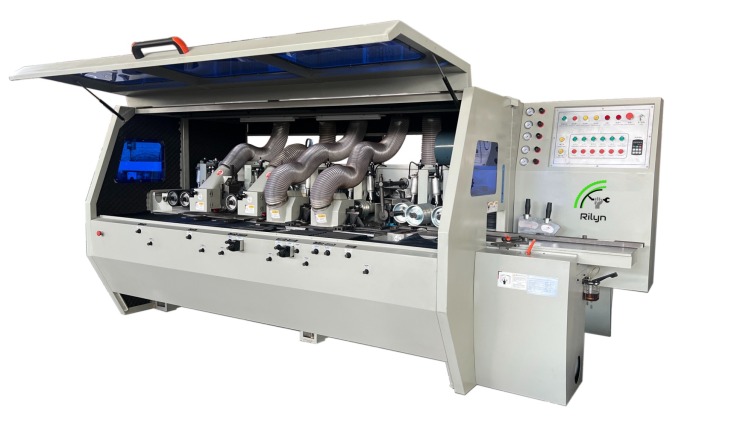

Four-side moulder MB-623B
Four-side moulder MB-623B
Four-side moulder MB-623B
Four-side moulder MB-623B
Four-side moulder MB-623B

Four-side moulder MB-623B

Item No.: 00092
The Four-side moulder MB-623B is especially solving the four-sided machining of the four-sided planed board and laminated wood.
Refers to important equipment indispensable for plate factories such as splicing boards and fine wood boards.
Request Quote PDF Format
Description Application Technical details Review
Description


                                                                         The Control Panel

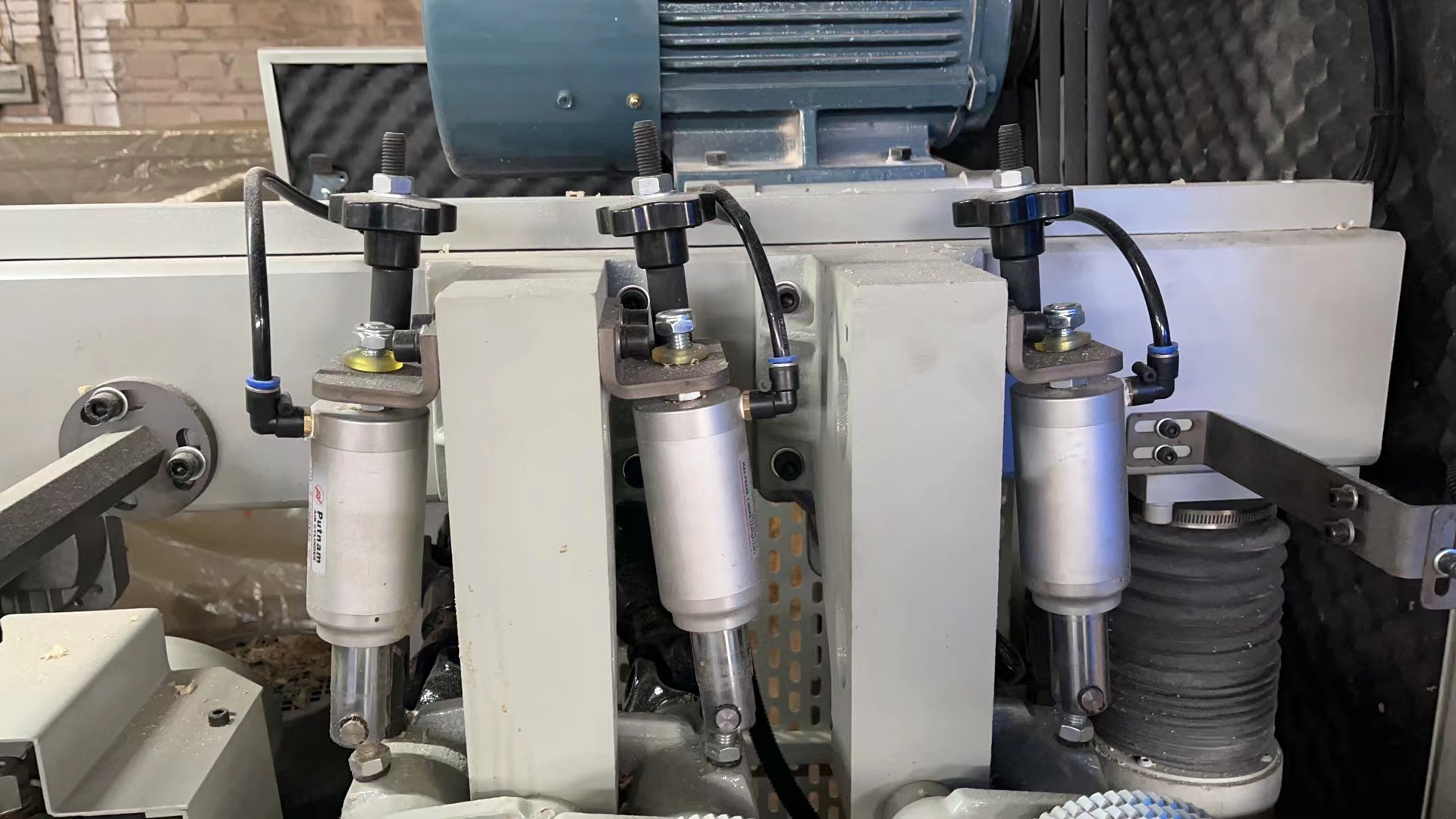

                                                                        The Air Cylinders

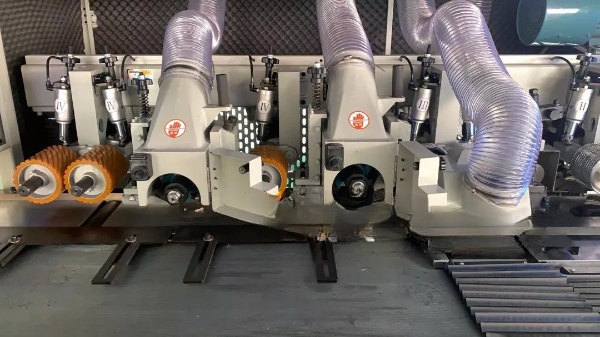

                                                              The Dust Tubes Of All Side Cutters

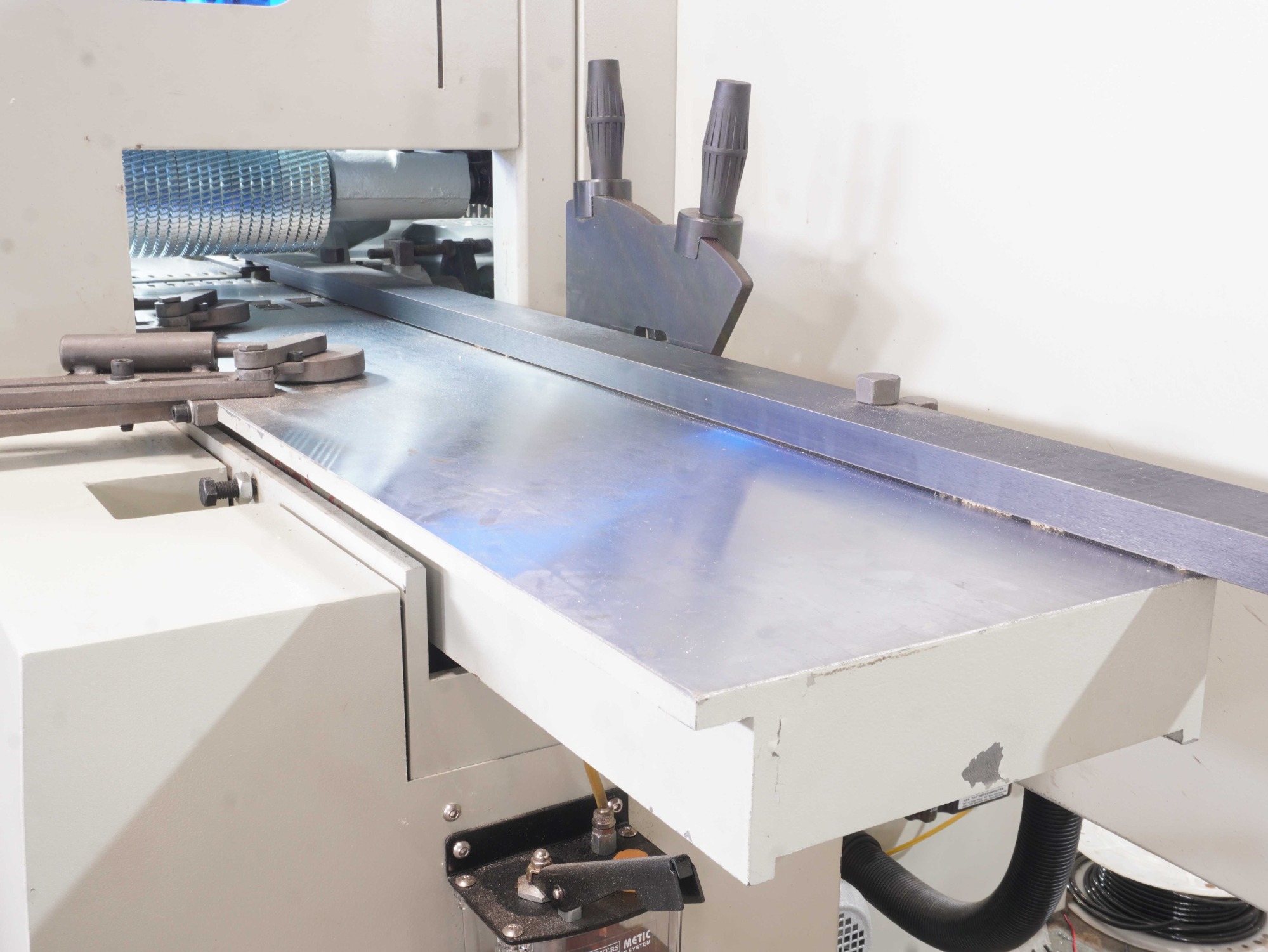

                                                                        The workbench

Application

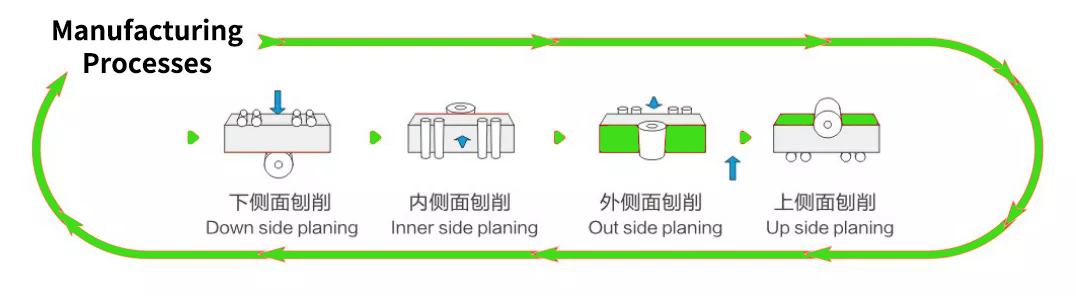

The Four-side moulder MB-623B is used to create a variety of different moldings and shapes in wood. It is typically used in the woodworking industry to create decorative edge treatments, door frames, window frames, and other detailed shapes and finishes in wood. The machine operates by feeding the wood through rotating cutter heads that remove material and shape the wood according to the desired profile. The four-side molder is commonly found in woodworking workshops, furniture manufacturing plants, and construction sites where precision and efficiency in shaping wood are required.

Molding of wooden floors, wooden doors, hardwood lines, and large cutting lines.
A variety of different arbor arrangements to meet the needs of diverse and batch production of wood products processing industry.

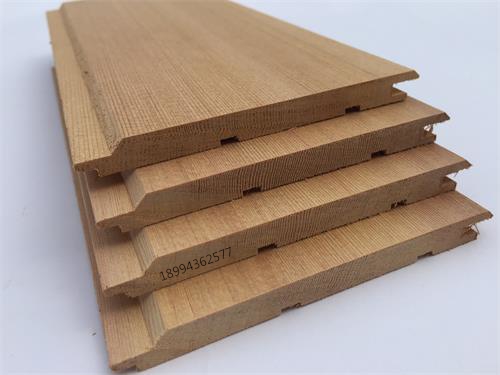

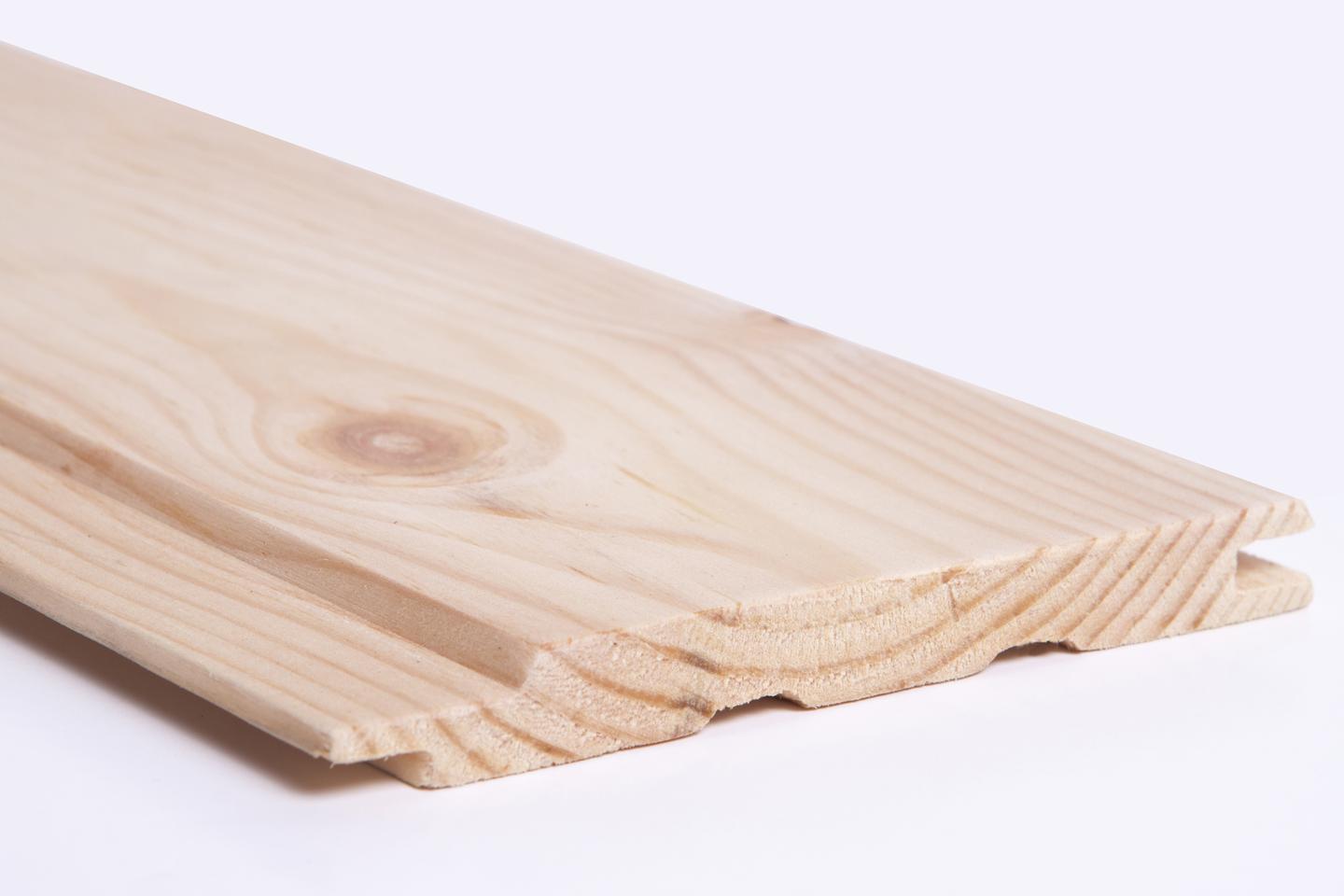

Samples

Technical details

Model

MB-623B

Feeding Speed

10-35m/min

Spindle Speed

7000r/min

Spindle Dia.

ø40mm

Down Spindle Motor

5.5kw

Left&Right Spindle Motor

4kw*2pcs

1st Upper Spindle Motor

9kw

2nd Upper Spindle Motor

7.5kw

2nd Down Spindle Motor

5.5kw

Feed Motor Power

5.5kw

Total Power

41.75kw

Overall Shape(mm²)

4050*1700*1750mm

Weight

3900kgs
