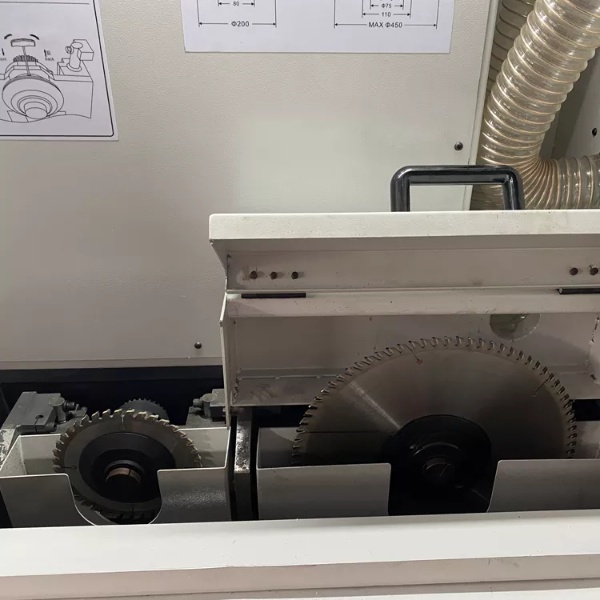

The independent main saw and scoring saw The roller moving table
|

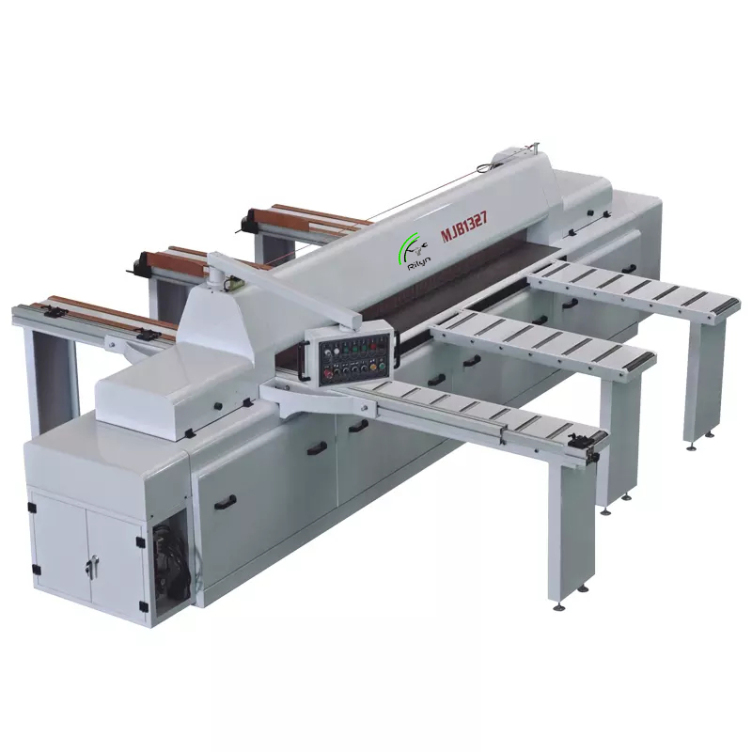

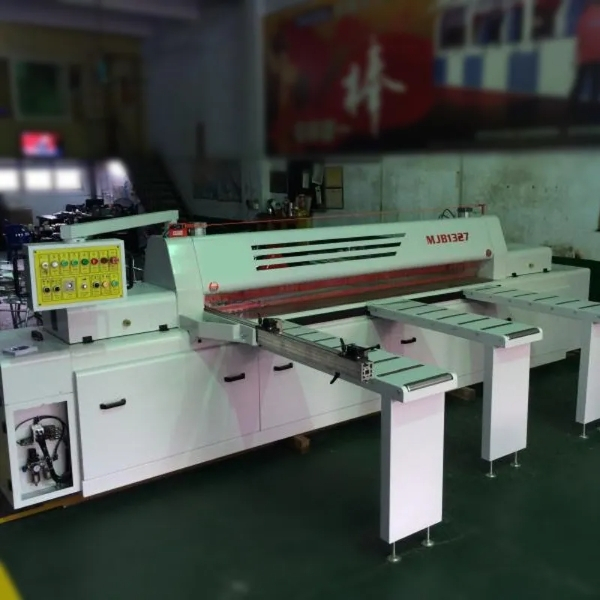

Horizontal Electronical Beam Saw MJ1327 |
|
|
Max cutting length |
3270mm |
|
Max saw height |
80mm |
|
Dia. of main saw blade |
Ø350mm |
|
Dia.of main spindle |
Ø30mm |
|
Main saw arbor rotary speed |
4800rpm |
|
Dia. of Auxiliary saw blade |
Ø160mm |
|
Dia. of Auxiliary spindle |
Ø30mm |
|
Auxiliary saw arbor rotary speed |
6500rpm |
|
Speed of advance |
0-45m/min |
|
Speed of retreat |
60m/min |
|
Main motor |
11kw |
|
Saw block driving power |
1.5kw |
|
weight |
2700kg |
|
Overall dimension |
5960x3790x1930mm |
