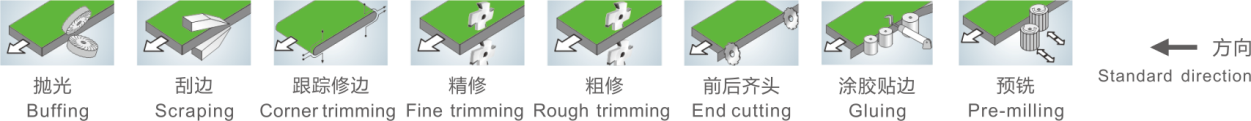

Pre-milling functions Automatic mill the surface of the workpiece so that can make it is smooth enough to be glued. |
|
Teflon high-capacity glue pot cleaning is more convenient 1. Pneumatic components all use the well-known brand AIRTECH. 2. An active pressure roller, their passive pressure roller, and pressure roller inclination angle make the edge banding more tightly. |
|
Infrared monitoring device Help the machine to locate quickly and ensure the processing accuracy |
|
Fine trim and rough trim function 1. The stable and efficient mechanical structure makes the trim effect adjustment more direct and beautiful. |
|
Corner trimming function Cut-out arcs on the four vertical sides, the plate is more beautiful and does not hurt the hands |
|
Scraping function 1. With the automatic blowing function remove the residue after scraping. 2. New mechanical structure effectively improves the scraping effect. |
|
Pneumatic polishing functions 1. Automatic sealing machine adopts pressure lifting adjustment. 2. Use a special high-power gear reducer motor. 3. Pneumatic four polishing function, enhance the overall effect of the plate. |
|
Model |
RL-468J |
|
Feeding speed |
15-23m/min |
|
The thickness of edge banding |
0.3-3mm |
|
Thickness of panel |
8-50mm |
|
Length of panel |
≥150mm |
|
Width of panel |
≥50mm |
|
Working pressure |
0.6MPa |
|
Min. dimensions of the panel |
120mm(L)*120(W) |
|
Total power |
20.2kw |
|
Overall dimension(L*W*H) |
6600*900*1560mm |
|
Net weight |
3300kg |
