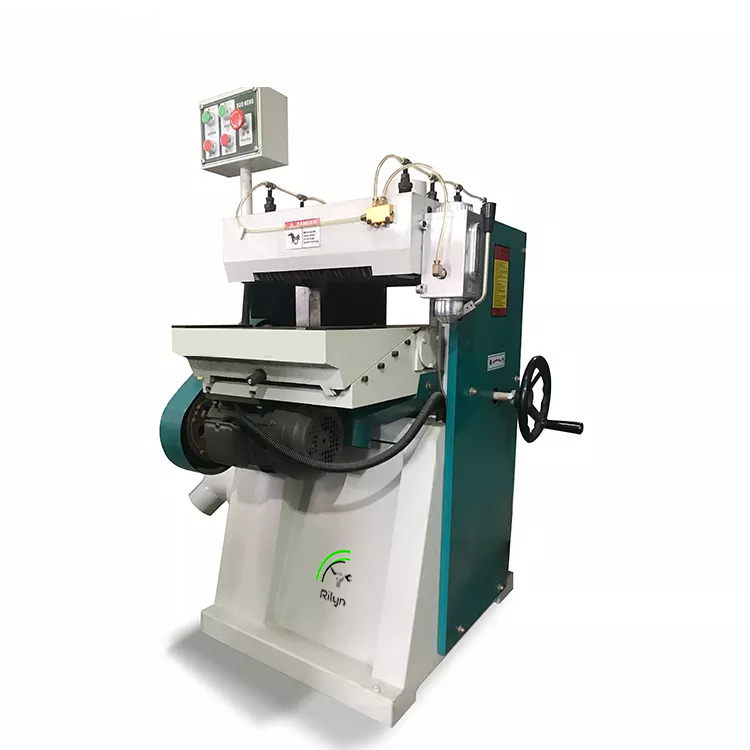

The Wood Automatic Double Side Surface Planer MB203A is primarily used in woodworking to shape and smooth wooden boards. It is equipped with two cutting heads, one on the top and one on the bottom, that rotate at high speeds to remove material from both sides of the board simultaneously. This allows for a more efficient and uniform thickness of the wood, resulting in a smooth and even surface. Double-sided planers are commonly used in industries that require large quantities of finished lumber, such as furniture manufacturing, carpentry, and construction. It is used to size the thickness of the material by cutting 2 faces of the product in a single pass. The result is a more consistently sized part with less processing time.
|
Model NO. |
MB203A |
|
Working thickness |
10-130mm |
|
Working width |
300mm |
|
Min. working length |
280mm |
|
Max. working depth |
4mm(upper cutter) /2mm (bottom cutter) |
|
Spindle speed |
7000rpm |
|
Upper cuttermotor power |
5.5kw |
|
Bottom cutter motor power |
4kw |
|
Feed speed |
8.5m/mm |
