The Drilling Row
1. The drilling row has a Large drilling range, and all the drill bits use quick connectors, which is convenient and quick. 2. An active pressure roller, passive pressure roller, and pressure roller inclination |

|

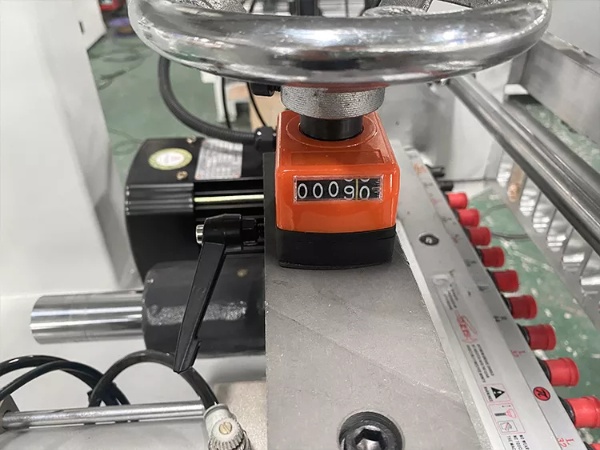

Size Digital Calculator
Equipped with a size digital calculator to improve work efficiency. |

|
The Frame
Machine tool components, the selection of high-quality steel, and high-temperature annealing ( eliminating internal stress ) treatment will never deform. |

|

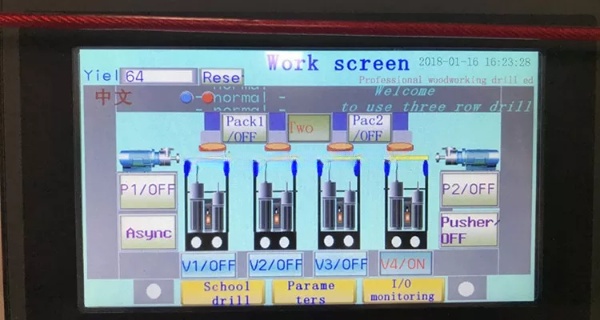

Taiwan control system Adopting a PLC system ensures reliable and easy operation. The PLC system is Taiwan KINCO. |

|

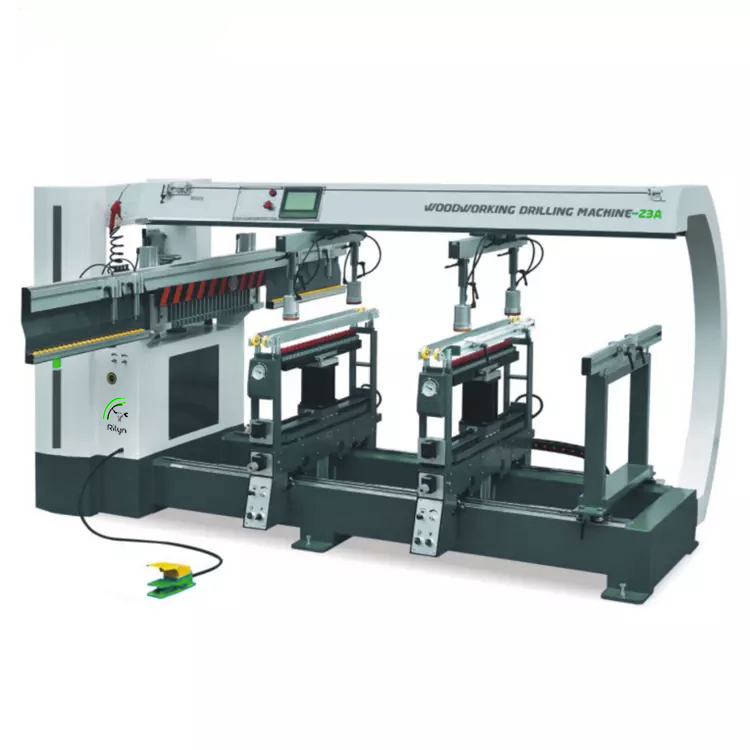

Specification For Z3A Three Rows Drilling Machine |
|||
|
Max. hole depth |
60mm |
Max. machining hole spacing |
2040*640mm |
|
Total motor power |
4.5kw |
Spindle speed |
2840rpm |
|
Max. hole diameter |
35mm |
The total num. of rotating shaft |
21*3=63pcs |
|
Size |
3000*2500*1560mm |
Weight |
1250kgs |
