The Drilling Row
The drilling row has a Large drilling range, and all the drill bits use quick connectors, which is convenient and quick. 2. An active pressure roller, their passive pressure roller, and pressure roller inclination |
|
Size Digital Calculator
Equipped with a size digital calculator to improve work efficiency. |
|
The Frame
Machine tool components, the selection of high-quality steel, and high-temperature annealing ( eliminating internal stress ) treatment will never deform. |
|

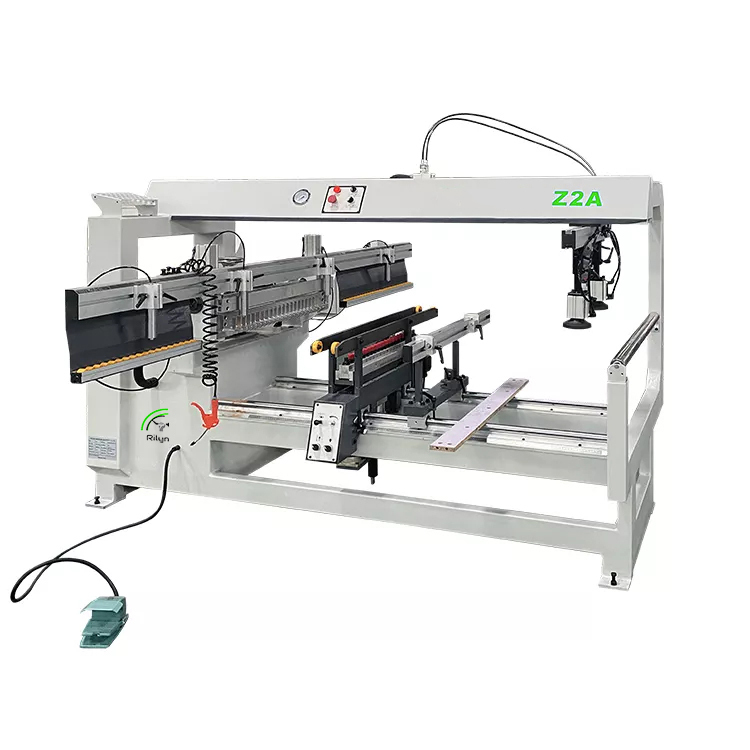

Specification For Z2A Two Rows Drilling Machine |
|||
|
Max. hole depth |
60mm |
Max. machining hole spacing |
1500*640mm |
|
Total motor power |
3kw |
Spindle speed |
2840rpm |
|
Max. hole diameter |
35mm |
The total num. of rotating shaft |
21*2=42pcs |
|
Size |
2580*1300*1750mm |
Weight |
750kgs |
